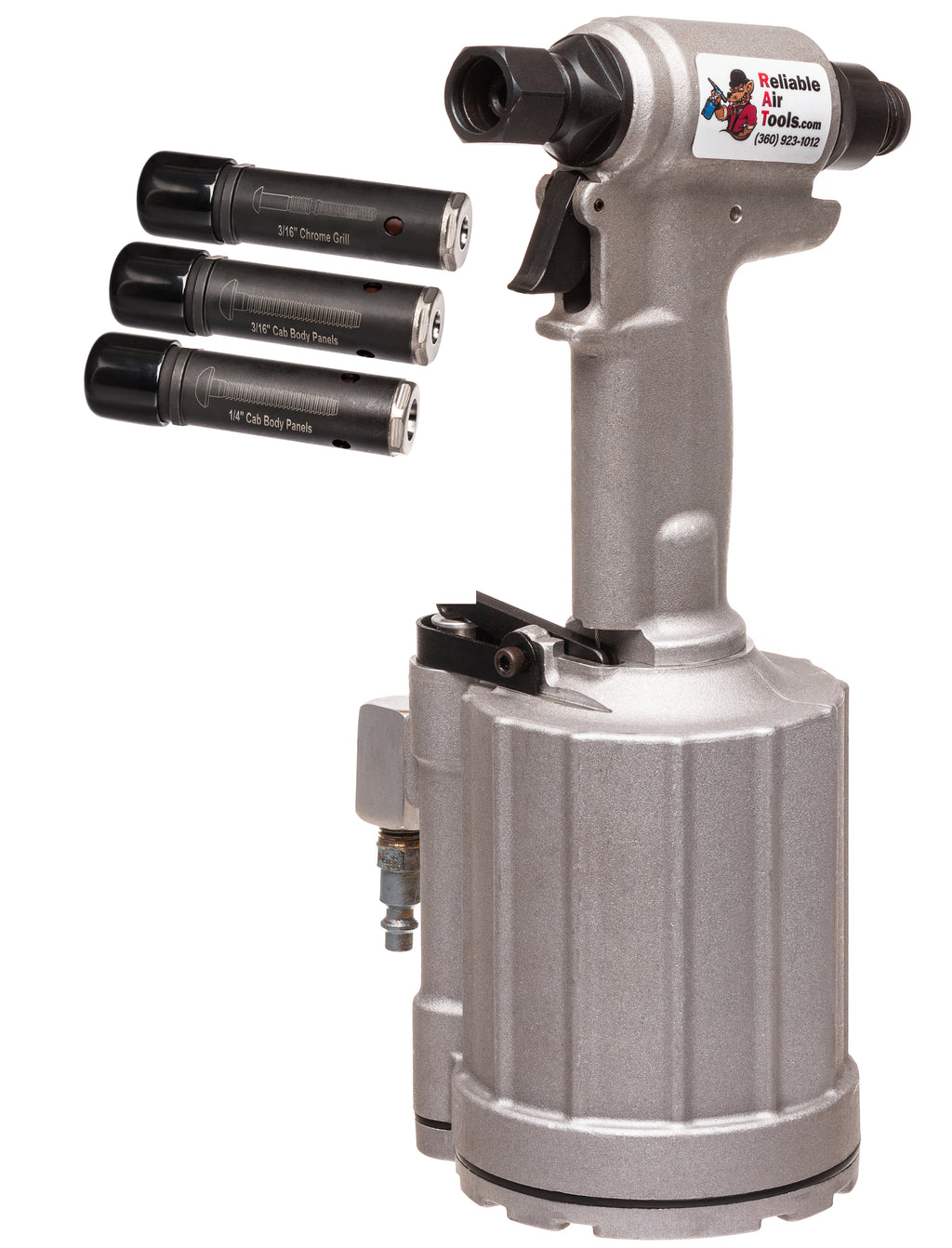

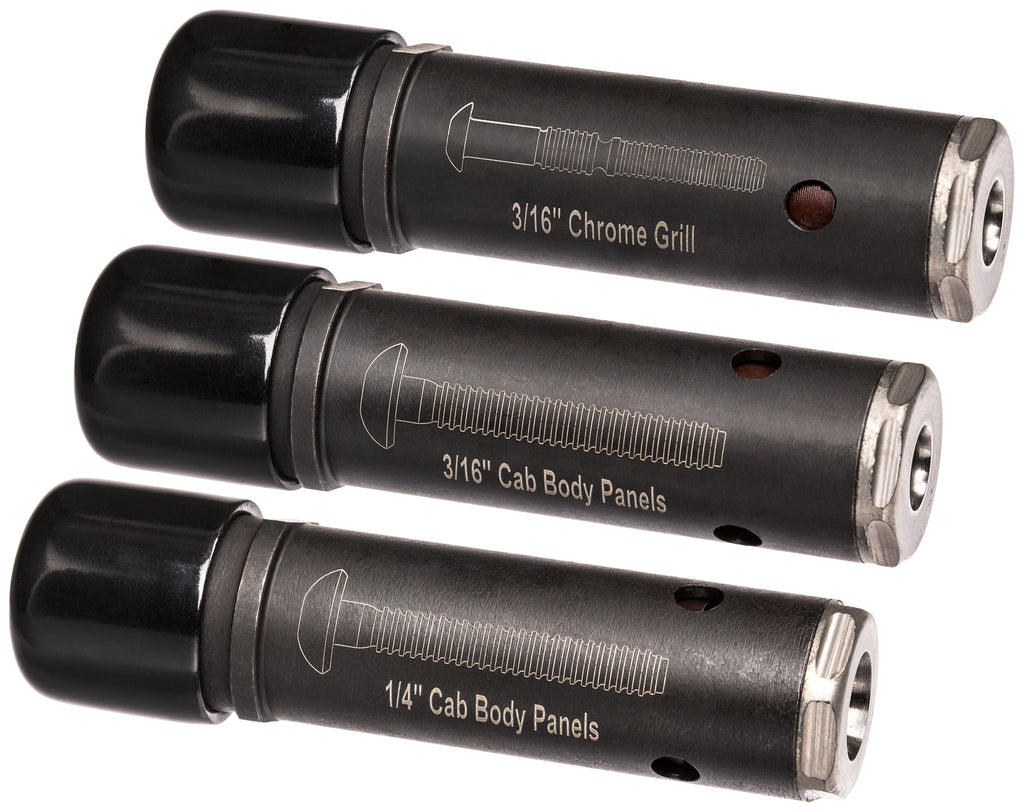

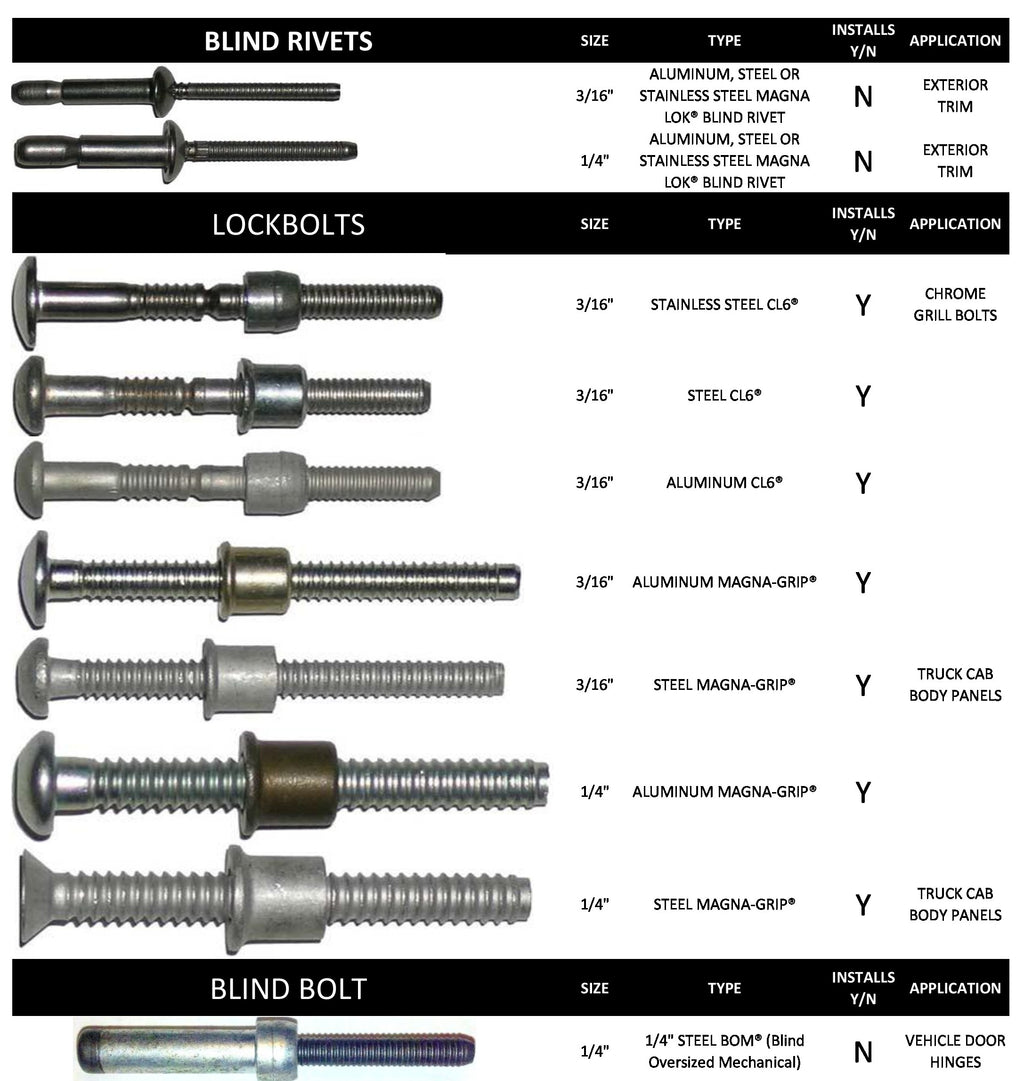

This tool installs up to 1/4" Magna-grip® lockbolts and is capable of installing all lockbolt and blind fasteners used in truck cab bodywork. It is compatible with Huck® 202, 210, 212, 244, 2025, 229, 230, Gage Bilt 722, 730, 731 and uses the same 3/4" diameter noses. This kit includes 3/16" & 1/4" Magna-Grip® noses used to install cab body panels and a 3/16" C6® nose used to install chrome grill bolts.
This tool is not Huck® brand, but is comparable to the Huck® 2025. This tool does not have the American brand's chrome-plated piston/rods and some threads and screws are metric. Though manufactured in China, all seals are American made. This is is a mature product and during its 7 years on the market has proved to be very reliable and should be suitable for busy repair shops and light production environments.

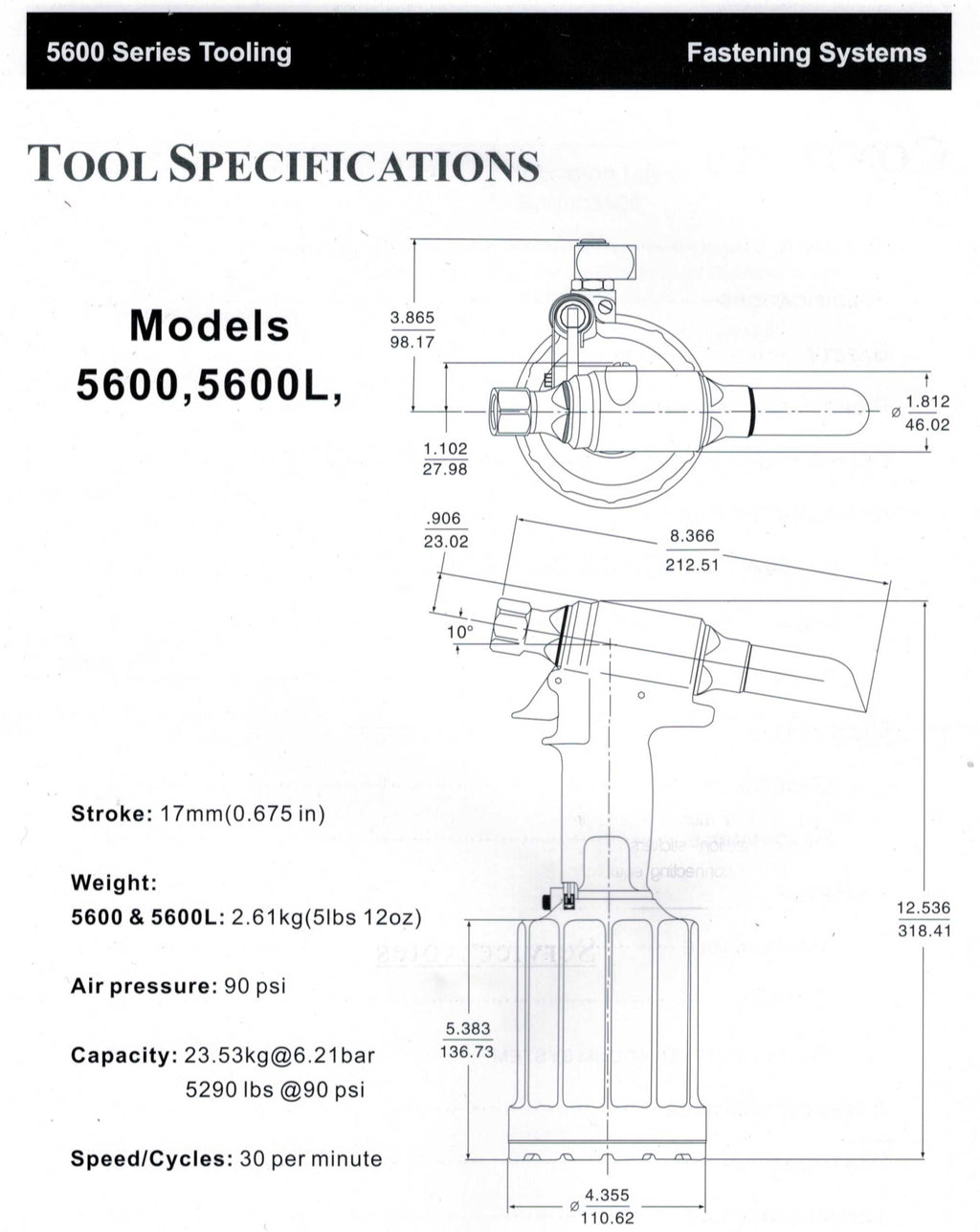

Pneudraulic Riveter, 0.675 Inch (17.15mm) Stroke, 8.5 scfm (241 lpm) Flow Rate, Pull Capacity: 5290lb. at 90 psi (23.531kN at 6.2 bar), Air Pressure 90 psi (6.20 bar), Speed/Cycles 30 per min, Power Source: 90 psi Shop Air, Hydraulic Fluid: Automatic Transmission Fluid meeting DEXRON® III, DEXRON VI, MERCON®, Allison C-4 or equivalent, 32 to 125 Deg F (0 to 51.7 Deg C) Operating Temperature, Cylinder Diameter: 4.355 Inch (110.62mm), Overall Height: 12.536 Inch (318.41mm), Length of Head: 8.370 Inch (212.60mm), Center to Edge: 0.906 Inch (23.01mm), Fastener Type: 3/16 Inch, 1/4 Inch, Weight 5lb. (2.27kg)
Compare to Gage Bilt 722 and Huck® 2025.
HUCK®, MAGNA-GRIP®, MAGNA-LOK®, BOM® AND C6L® ARE REGISTERED TRADEMARKS OF ALCOA INC. KENWORTH® AND PETERBILT® ARE REGISTERED TRADEMARKS OF PACCAR INC. FREIGHTLINER® IS A REGISTERED TRADEMARK OF DAIMLER TRUCKS NORTH AMERICA, LLC. MACK® IS A REGISTERED TRADEMARK OF MACK TRUCKS, INC.
